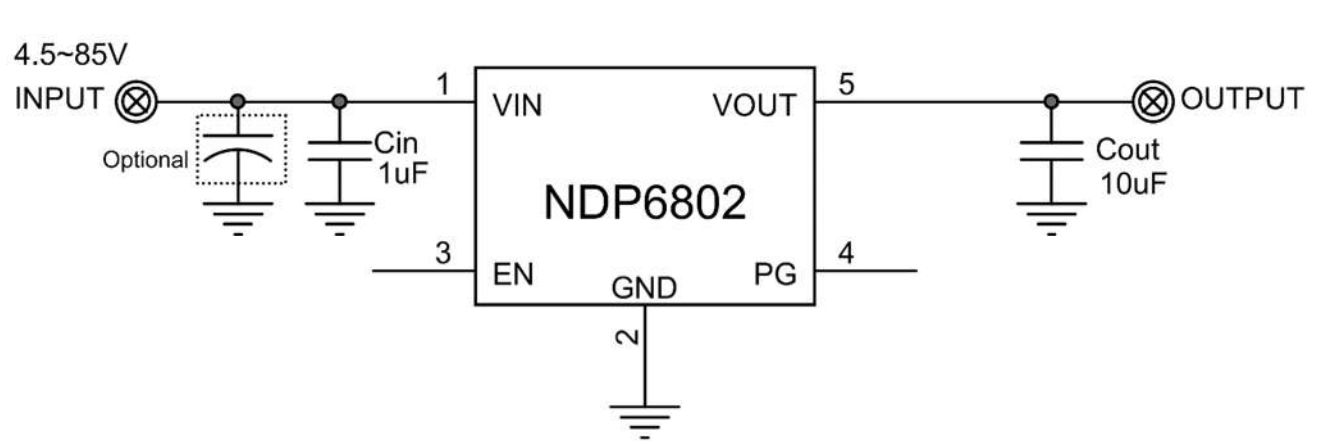

NDP6802 is a very high voltage tolerant linear regulator in TO252-5 package and is able to withstand continuous DC or transient input voltages of up to 85V. The NDP6802 is stable with any output capacitance greater than 10uF and any input capacitance greater than1uF, therefore NDP6802 only require minimal board space, the internal thermal shutdown and current limiting to protect the system during fault conditions. In addition, the NDP6802 is ideal for battery applications. It can also withstand and maintain regulation during very high and fast voltage transients. And only draw 17uA from input.
※Very High Maximum input voltage:85V
※Wide input voltage Range:4.5 to 85V
※1.5% output accuracy
※Low quiescent Current:3uA
※Maximum Output Current:70mA
※Output Voltages: 3.3V, 5V, 12V
※Stable with small Capacitance
※Input Capacitance >=1uF
※Output Capacitance >=10uF
※Built in Current Limit
※Built in Thermal Regulator
※High Thermal Performance TO252-5
※Automotive
※Power over Ethernet
※Battery Powered Systems
※Bias Power Supplies
